Android – Kotlin

Get Started

You can install the 1Flow Android library using Gradle.

1. Install 1Flow

Install via Gradle

If Gradle version is 6.5 or lower, include the below repository in your project's build.gradle file:
allprojects{ repositories{ google() jcenter() maven{url 'https://jitpack.io'} } }
If Gradle version is higher than 6.5, add the below code in settings.gradle.
dependencyResolutionManagement { repositoriesMode.set(RepositoriesMode.FAIL_ON_PROJECT_REPOS) repositories { google() mavenCentral() maven{url 'https://jitpack.io'} } }
Add dependency in your app's build.gradle file:
compileSdkVersion 33 .... defaultConfig { .... minSdkVersion 21 } dependencies { .... implementation "com.github.1Flow-Inc:1flow-android-sdk:2024.02.26" }

2. Initialize 1Flow

Call this method from onCreate in Main Activity / Launcher Activity.
private void configureOneFlow(){ OneFlow.configure(this@YourActivityName, "your-project-api-key"); }
Note: you need to replace your-project-api-key with your actual project API key. Click here and navigate to Settings → Project → API keys section. Copy your API key and paste it into the code snippet.
After adding the above method, you need to add import 'OneFlow' in any class where 1Flow is called.

Customize font (optional)

If you’re using custom fonts in your app, you can configure 1Flow to use the same font as the rest of your app.
/** yourFontFilePath : if your file name is 'arial.ttf', then you should pass "fonts/arial.ttf", assuming 'arial.ttf' file is inside 'fonts' folder */ OneFlow.useFont("yourFontFilePath");
Usually, we keep custom fonts in 'assets/fonts' folder.

Setup Observer (optional)

You can setup observer to listen for OneFlow setup event.
OneFlow.config { callback = { onFailure = {} onSuccess = {} } }

Disable logs (optional)

You can disable the logs printed by OneFlow in your console. Use OneFlow.shouldPrintLog(false) to keep your console clean from OneFlow logs.

3. Identify users

In every new session, you can call OneFlow.logUser() to pass the user identifier, along with any other parameters you'd like to store with us (such as email, full name, etc.), to 1Flow.
To identify a user:
val userDetail: HashMap<String, Any?> = HashMap() userDetail.put("name","TestUser") userDetail.put("age", 79) userDetail.put("height",5.10) OneFlow.logUser("[userId]", userDetail);
The 'userDetail' HashMap is optional, so you can just pass in null if no additional info to send.

4. Track events

Events are central to 1Flow. An Event is a marker in the code to track a key moment in the user flow - like when the user just created an account, completed some action, made a purchase or rejected an offer.
We recommend you track at least 4-5 events to better understand the user journey.
To track an event:
val mapValues: HashMap<String, Any?> = HashMap() mapValue.put("testKey1","testValue") mapValue.put("testKey2","testValue") mapValue.put("testKey3","testValue") OneFlow.recordEvents("[eventName]", mapValues);
Here, 'mapValue' is optional. Pass null if you don't want any additional parameters to send with the event.
Parameters in Identify and Track calls support the following types: String, Int, Double, Float, URL, and Date.

Unsupported data types will be ignored.
Parameters in Identify and Track calls support the following types: String, Int, Double, Float, URL, and Date. Unsupported data types will be ignored.

5. Announcement Inbox

To display the announcements inbox to the user, invoke the function OneFlow.showInbox(). This action will render the announcements inbox at the top of the screen.
Note: Until the Announcement inbox screen is presented, the system will bypass any surveys or in-app announcements associated with events triggered within that timeframe.

Launch your first survey

Now that you've successfully installed 1Flow into your app, it's time to create your first survey.
If you've already created a survey and published it, run the app and trigger the event. You should see the survey show up when the event is fired.

Common issues and fixes

Manifest merging issue
Duplicate class android.support.v4.app.INotificationSideChannel

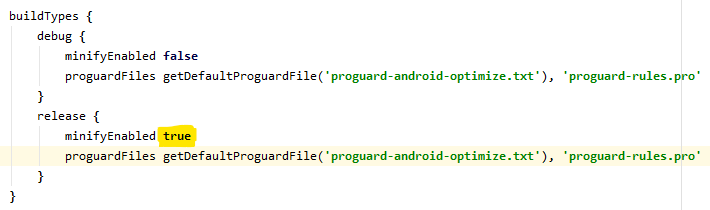

Pro-guard issue (things working in debug mode but not in release mode)
